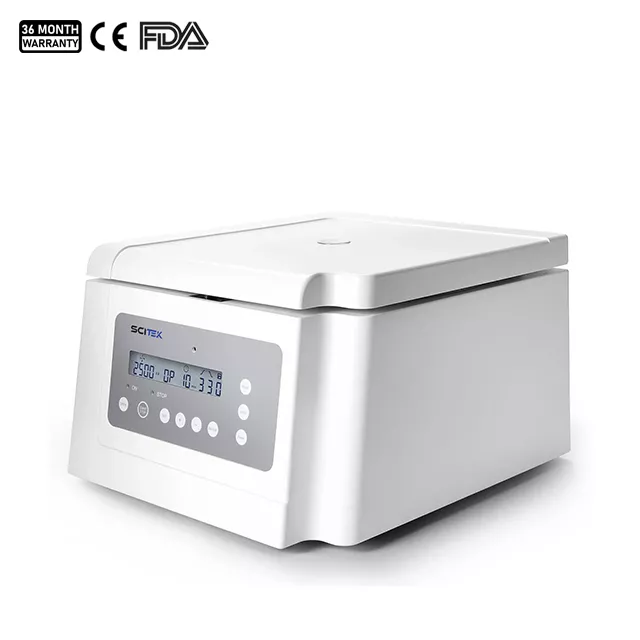

Clinical Centrifuge LC Series

Model : CFG-4LC; CFG-4LCE
Speed Range (rpm) : 500-4000 / 300-4000
Max RCF (xg) : 2500 / 1900
Timer : 1min-99min
Rotor Capacity : Swing 6×15ml, Swing 4×50ml, Angle 24×15ml, Angle 12×10ml / 8×15ml / Angel 8×15ml (Default), Angel 10ml×12

Clinical Centrifuge Feature:

Programmable Speed – Set RPM/RCF with three programmable storage options.
Max Capacity – Holds 4 × 50ml tubes, compatible with blood collection and centrifuge tubes.
Self-Diagnosis System – Automatic internal detection enhances safety.
Brushless DC Motor – Maintenance-free design ensures reliable, hassle-free operation.

Clinical Centrifuge Specifications:

Model	CFG-4LC	CFG-4LCE
Speed Range	500-4000rpm increment: 100rpm	300-4000rpm increment: 100rpm
Max. RCF	2500×g	1900×g
Speed Accuracy	±100rpm	±100rpm
Rotor	Swing6×15ml	Angel 8×15ml(Default)
	Swing4×50ml	Angel 10ml×12
	Angle 24×15 ml
	Angle 12×10ml/8×15ml
Run Time	1-99min, HOLD	1-99min, HOLD
Motor	Brushless DC motor	Brushless DC motor
Display	LCD	LED
Program	Blood: 3200rpm, 10min	Blood: 3200rpm, 10min
	Urine: 1800rpm, 5min	Urine: 1800rpm, 5min
	Faecal: 1300rpm, 10min	Faecal: 1300rpm, 10min
Safety Device	Automatic internal diagnosis	Automatic internal diagnosis
Acceleration/Deceleration	3↑4↓steps	25s↑35s↓
Power	Single phase, 100V-240V, 50Hz/60Hz	Single phase, 100V-240V, 50Hz/60Hz
Sizes(W×D×H)(mm)	440x364x268	367x286x227
Shipping Size (W×D×H)(mm)	510x400x380	550x495x480
N.W./G.W. (kg)	14.5/16	9.2/11
Noise	≤62dB(A)	≤60dB(A)
