- Model : MSC-BH208B; MSC-BS208B
- Viewing Head : Siedentopf Binocular Viewing Head at 30° IncIined Interpupillary (55-75mm) / Sliding Binocular Head lnclined at 45° Interpupillary (55-75mm)
- Eyepiece : Wide Field Eyepiece WF10x18mm
- Objective : Achromatic Objective 4x, 10x, 40x, 100x

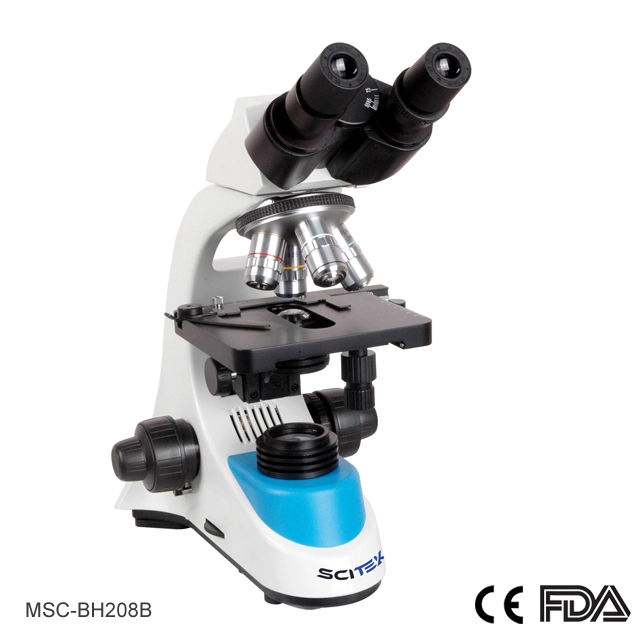

Biological Microscope, Binocular Head
Biological Microscope Feature:
- Equipped with WF10X18mm wide-field eyepieces for clear, detailed imaging across various specimen types.
- The double-layer mechanical stage enables precise specimen positioning and manipulation.
- An Abbe condenser (NA 1.25) with an iris diaphragm and filters enhances contrast and illumination control for optimal performance.
- A coaxial coarse and fine focus system with a 0.002mm fine adjustment range ensures precise focusing.
Biological Microscope Specification:
| Model | MSC-BH208B | MSC-BS208B |
| Viewing Head | Siedentopf Binocular Viewing Head at 30° | Sliding Binocular Head lnclined at 45° |
| IncIined Interpupillary (55-75mm) | interpupillary (55-75mm) | |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Nosepiece | Quadruple Nosepiece | |
| Objective | Achromatic Objective 4X,10X,40X,100X | |
| Stage | Double Layers Mechanical Stage 140x135mm/ 75x50mm | |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
| Illumination | S-LED Illumination, Brightness Adjustable | |
| Halogen Lamp 100V-240V/ 6V20W | ||
| Plan-concave Mirror | ||
| Filter | White Filter | |
| Package | Carton | |
| Shipping Size(W×D×H) (mm) | 360x260x470 | |
| Gross Weight (kg) | 7 | |
