- Model : MSC-BH103B; MSC-BS103B
- Viewing Head : Seidentopf Binocular Head lnclined at 30, Interpupillary 55-75mm
- Eyepiece : Wide Field Eyepiece WF10x18mm
- Objective : Achromatic Objective 4x, 10x, 20x, 40x, 100x / Plan Achromatic Objective 4x, 10x, 20x, 40x, 100x

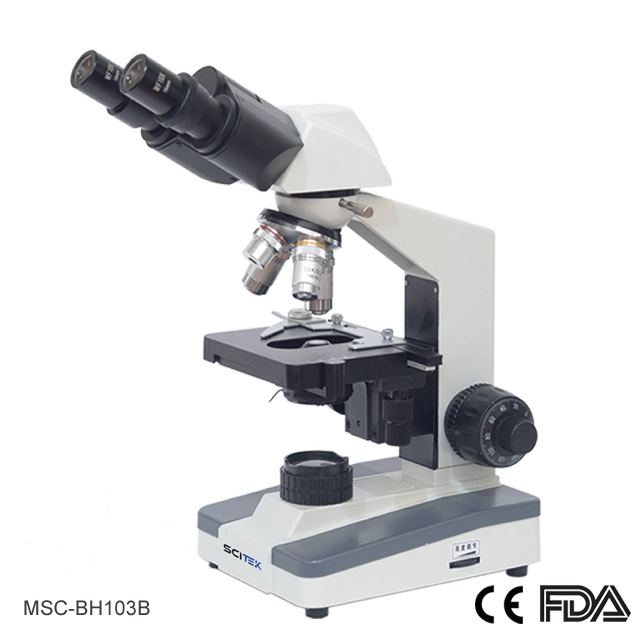

Biological Microscope MSC-103B Series
Biological Microscope Feature:
- Microscopes feature translating and hinged binocular heads, ensuring comfort and optimal field of view.
- Wide-field eyepieces enhance observation comfort and clarity.
- Achromatic objective lenses deliver high-quality optics for precise imaging.
- A four-position nosepiece allows easy objective selection, increasing experimental versatility.
- The dual-movable stage design offers expanded operating space for users.
Biological Microscope Specification:
| Model | MSC-BH103B | MSC-BS103B |
| Viewing Head | Siedentopf Binocular Head, lnclined at 30°, Interpupillary 55-75mm | Sliding Binocular Head at 45掳, IncIined Interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Objective | Achromatic Objective: 4X, 10X, 20x, 40X, 100X | |
| Plan Achromatic Objective: 4x, 10x, 20x, 40x, 100x | ||
| Nosepeice | Quadruple Nosepiece | |
| Stage | Double Layers Mechanical Stage 115x125mm/ 70x30mm | |
| Condenser | Abbe NA1.25 with Iris Diaphragm & Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, | |
| Fine Stroke 0.2mm per Rotation, Moving Range 20mm | ||
| Illumination | LED Lamp, Brightness Adjustable | |
| Halogen Lamp 6V 20W, Brightness Adjustable | Halogen Lamp 100V-240V/ 6V20W | |
| Plan-concave Mirror | ||
| Package | Styrofoam | |
| Carton | ||
| Wooden Case | ||
| Shipping Size (WxDxH)(mm) | 370x260x470 | |
| G.W. (kg) | 6 | |
| Filter | / | White Filter |
