- Model : ICB-175C; ICB-275C; ICB-375C; ICB-475C; ICB-800C; ICB-1075C
- Capacity : 175L / 275L / 375L / 475L / 800L / 1075L
- Illumination : 0~10000Lx / 0~15000Lx / 0~20000Lx / 0~23000Lx / 0~25000Lx / 0~25000
- Circulation Mode : Forced convection
- Temperature Range : With light: 10~55, Without light: 5~55

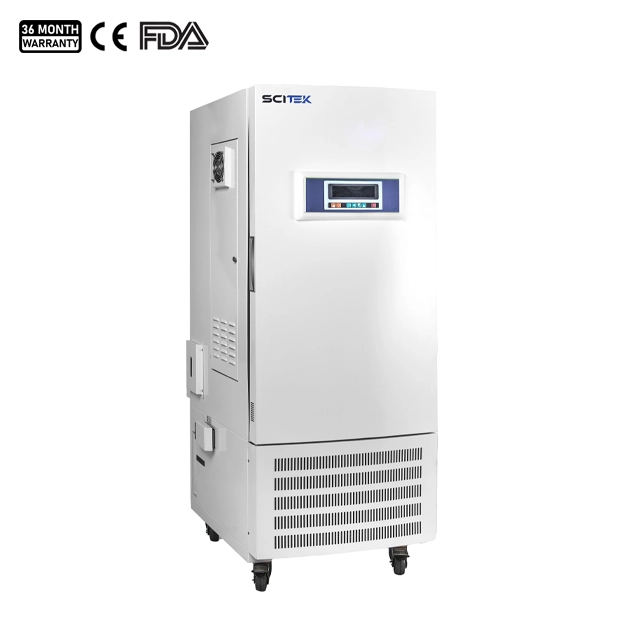

Climate Incubator 175/275/375/475/800/1075L
Climate Incubator Feature:
- LCD display shows fault information during failure.
- Simulates day/night temperature changes to mimic natural conditions.
- User-set parameters auto-save and restore after power loss.
- Multi-segment control for temperature, humidity, light, time, and heating rate.
- Simplifies testing with automatic control and operation.
- Audible/visual alarms for high/low temperature.
- Backup temperature control ensures heating during main control failure.
Climate Incubator Specifications:
Model | ICB-175C | ICB-275C | ICB-375C | ICB-475C | ICB-800C | ICB-1075C | |
Capacity(L) | 175 | 275 | 375 | 475 | 800 | 1075 | |
Circulation Mode | Forced convection | ||||||
Size |
Internal (mm) | 450x420x930 | 580x510x935 | 590x550x1160 | 700x550x1250 | 960x610x1370 | 950x700x1600 |
External (mm) | 610x620x1500 | 740x710x1570 | 750x750x1730 | 860x750x1820 | 1130x930x1980 | 1010x900x2240 | |
Temperature | Range (℃) | With light: 10~55; Without light: 5~55 | |||||
Fluctuation (℃) | ≦ ±1 | ||||||
Resolution (℃) | 0.1 | ||||||
Uniformity (℃) | ≦ ±1 | ||||||
Sensor | PT100 | ||||||
Humidity | Range | 30~95%RH | |||||
Stability | ±3%RH | ||||||
Method | Internal | ||||||
Sensor | High precision anti-condensation | ||||||
Illumination(Lx) | 0~10000 | 0~15000 | 0~20000 | 0~23000 | 0~25000 | 0~25000 | |
Controller | Microcomputer | ||||||
Display | Large high efinition LCD | ||||||
Timer | 1~99.9h x 30 Segments | ||||||
Material | Internal | Mirror Stainless Steel | |||||
External | Coated cold rolled steel | ||||||
Shelves(Standard/Max ) | 3/16 | 3/16 | 3/21 | 3/22 | 3/22 | 3/22 | |
Test Hole (Optional) | Φ25mm (50mm) | ||||||
Refrigerant | R134a (CFC free) | ||||||
Defrosting Mode | Automatic | ||||||
Safety Device | Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector, spare temperature control | ||||||
Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |||||
Consumption (W) | 860 | 1700 | 2100 | 4000 | 5000 | 6000 | |
N.W./G.W. (kg) | 180/234 | 211/267 | 249/339 | 306/369 | 368/518 | 450/620 | |
Shipping Size (WxDxH)(mm) | 750x1860x840 | 1010x900x1880 | 880x980x2100 | 1010x1000x2250 | 1290x1070x2320 | 1290x1170x2600 | |
Optional | Build-in printer, RS485 port, Φ25mm (50mm) test hole, spare shelf |
WHY SCITEK
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
