Economic Biological Microscope

Biological Microscope Feature:

The compensation-free binocular head ensures comfortable viewing and minimizes eye strain.
Wide-field eyepieces provide an expanded field of view with enhanced clarity.
A double-layer mechanical stage allows precise specimen positioning and smooth slide manipulation.
Various accessories support diverse applications and customizable experimental needs.

Biological Microscope Specification:

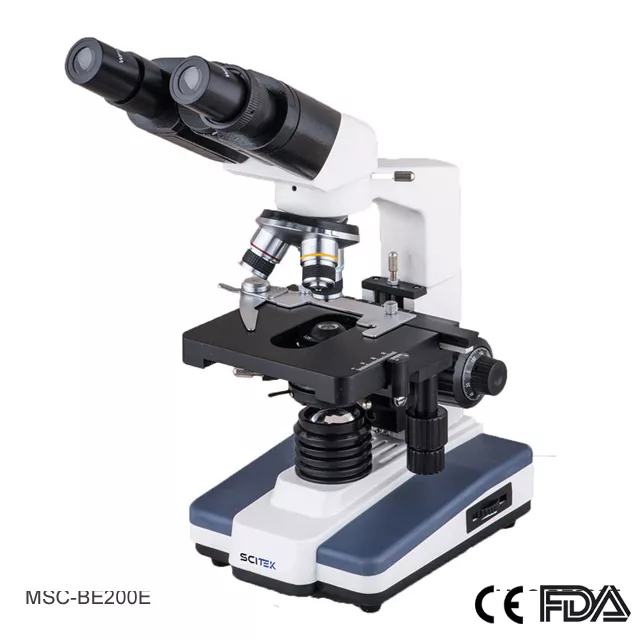

Model	MSC-BE200E	MSC-BD500E	MSC-BE500E	MSC-BSM500E	MSC-BV500E
Viewing Head	Compensation free binocular head inclined at 30°	Monocular Head, Inclined at 45°, 360° rotatable	Compensation Free, Binocular Head Inclined at 30°, 360° rotatable	Compensation Free, Trinocular Head, 360° rotatable	Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable
Eyepiece	Wide Field Eyepiece: WF10X, (WF16X Optional)
Achromatic Objectives	4X, 10X, 40X(Spring), 100X(Spring, Oil)
Stage	Double Layer Mechanical Stage Size 120x125mm
Condenser	Abbe NA=1.25 with Iris Diaphragm & Filter
Focusing	Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm
Illumination	Halogen Lamp 220V/6V20W or 110V/6V20W; (LED lamp optional)	LED(1W) Lamp 220V or 110V, (LED 3W lamp optional)
Power Supply	AC220/110V±10%, 50/60HZ
Shipping Size (W×D×H)(mm)	310x250x445	450x360x240
G.W. (kg)	4	5
Note: Trinocular microscope can be installed camera and screen.220/110V for LED lamp
