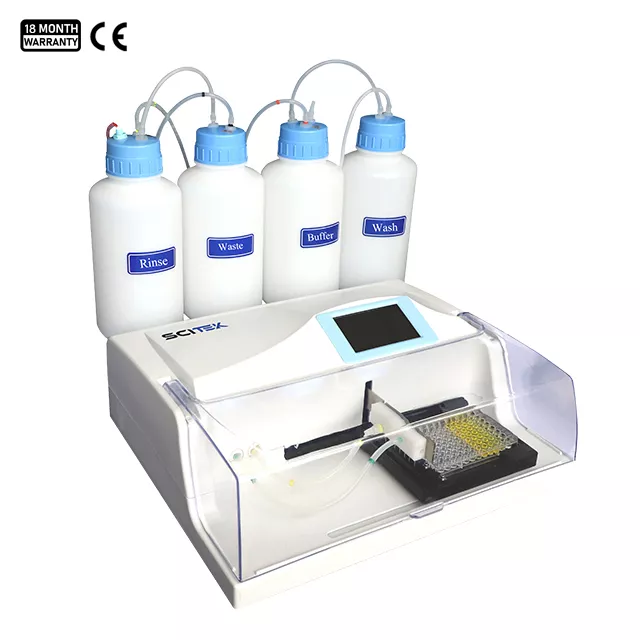

Elisa Microplate Washer ELMW-330

Ease of use, convenience and versatility for washing microplates in ELISA applications

Model : ELMW-330
Washing head : 8 needles /12 needles
Residual volume : ≤1uL/well
Liquid volume : 10-9999uL, Adjustable with 1μL as the step

Share the product

Elisa Microplate Washer Feature:

4.3” capacitive touch screen with high sensitivity for smooth operation.
Adjustable plate and strip washing for flexibility.
Two pipettes ensure low residual volume.
Complete bottom washing for thorough cleaning.
Shaking and dipping functions for enhanced washing performance.
Washing process can be paused as needed.
Wash fluid pressure is adjustable to meet different requirements.

Elisa Microplate Washer Specification:

Model	ELMW-330
Washing Head	8 needles /12 needles
Wash Mode	Plate or strip
Wash Times	1-99 times adjustable
Wash Strips	1-12 strips adjustable
Dipping Time	0-24 hour adjustable
Shaking Time	0-24 hour adjustable
Residual Volume	≤1uL/well
Liquid Volume	10-9999uL, Adjustable with 1μL as the step
Sipping Time	0.1-9.9 S
Wash Mode	With 2-point liquid suction, bottom washing, and fine adjustment of wash liquid pressure
Power Supply	198~242V, 49~51Hz
Sizes (W×D×H)(mm)	448(L)×382(W)×163(H)
Shipping Size (W×D×H)(mm)	600x490x530
N.W./G.W. (kg)	8/13kg
Operating Environment	Temperature 5℃–40℃, Max humidity 80%

Workflow of the Elisa Plate Washer:

Load the plate: Place the used ELISA 96-well plate on the plate holder of the ELISA plate washer.
Select plate wash program: Select the appropriate wash program and parameters.
Rinse the microplate: the washer will automatically clean the impurities on the plate.
Aspirate the waste liquid: The washer will aspirate the washing liquid and waste liquid from the wells through the vacuum system.
Repeat washing
Finish washing

What is the use of ELISA microplate washer:

An ELISA microplate washer is used to automate the washing steps in ELISA assays. It removes unbound reagents, antibodies, or other substances from the wells of a microplate, ensuring that only the bound target molecules remain. This helps improve the accuracy and reliability of the assay results by reducing background noise and preventing cross-contamination.

What is the function of the microplate washer?

The function of a microplate washer is to clean the wells of microplates, typically used in assays like ELISA, by removing unbound reagents, excess antibodies, or other materials. It ensures that only the specifically bound molecules remain, improving the accuracy and reliability of the assay. The elisa plate washer automates the process of dispensing wash solutions and aspirating the waste, making it efficient and reducing variability in the washing steps.
