- Model : FDO-20A; FDO-50A; FDO-100A; FDO-200A; FDO-625A
- Capacity : 30L/45L/65L/125L/230L/625L
- Circulation Mode : Forced air convection
- Temperature Range : RT+10-300℃
- Time Setting : 1~9999 mins

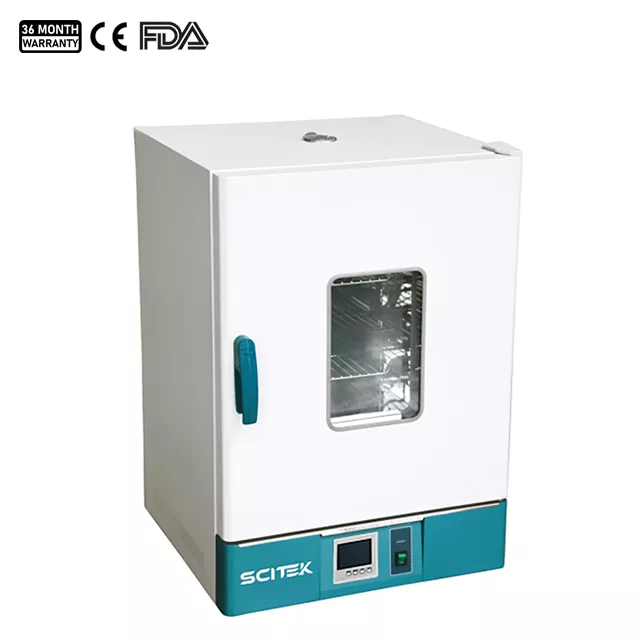

Vertical Forced Air Drying Oven
Vertical Forced Air Drying Oven Feature:
- High-quality cold-rolled steel casing with electrostatic spraying for corrosion resistance and durability.
- Turbine centrifugal fan with vertical double air ducts for uniform temperature distribution.
- Mirror stainless steel inner chamber with anti-corrosion treatment and adjustable partitions for easy cleaning.
- PID microcomputer controller with timing, overtemperature alarm, and precise temperature control.
- Low noise blower for quiet operation.
- New door structure with double-layer tempered glass window, good insulation, and heat-resistant sealing.
Vertical Forced Air Drying Oven Specifications:
| Model | FDO-30BI | FDO-45B | FDO-65B | FDO-125B | FDO-230B | FDO-625B |
| Capacity(L) | 30 | 45 | 65 | 125 | 230 | 625 |
| Display | LCD Display Screen | |||||
| Temperature Range(℃) | RT+10-300℃ | |||||
| Temperature Fluctuation(℃) | ±1℃ | |||||
| Temperature Uniformity | ±2.5% | |||||
| Temperature Resolution(℃) | 0.1℃ | |||||
| Time Setting | 1~9999mins | |||||
| Shelves | 2pcs | |||||
| Sensor | Pt100 | |||||
| Power Supply | AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V±10%, 50/60Hz | ||||
| Power(W) | 800 | 1200 | 1600 | 2300 | 3000 | 5000 |
| Chamber Size (W×D×H)(mm) | 310x310x310 | 350x350x350 | 400x360x450 | 500x450x550 | 600x500x750 | 660x760x1250 |
| Size (W×D×H)(mm) | 440x510x675 | 500x550x735 | 550x550x840 | 636x680x915 | 730x670x1220 | 895x925x1830 |
| Shipping Size (W×D×H)(mm) | 570x590x785 | 640x605x820 | 660x660x925 | 750x740x1020 | 920x820x1370 | 1020x1100x2020 |
| N.W./G.W. (kg) | 39/55 | 42/60 | 47/65 | 56/75 | 70/110 | 90/170 |
Applications of Forced Air Drying Oven:
- Drying laboratory glassware and instruments.
- Preparing samples for analysis by removing moisture.
- Curing and drying coatings, adhesives, and paints.
- Sterilizing medical equipment and materials.
- Conducting stability and aging tests on various products.
WHY SCITEK
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
What is a drying oven in a laboratory?
A drying oven in a laboratory is a piece of equipment designed to remove moisture from samples or materials by subjecting them to controlled heat.
What is the basic principle of drying oven?
The basic principle of a drying oven is to use controlled heat to remove moisture from samples or materials placed inside the oven. By increasing the temperature within the oven chamber, the water molecules in the samples gain energy, causing them to evaporate and escape into the surrounding air. This process continues until the moisture content of the samples reaches the desired level, effectively drying them. The oven’s ventilation system helps to remove the moist air and maintain a dry environment within the chamber.
