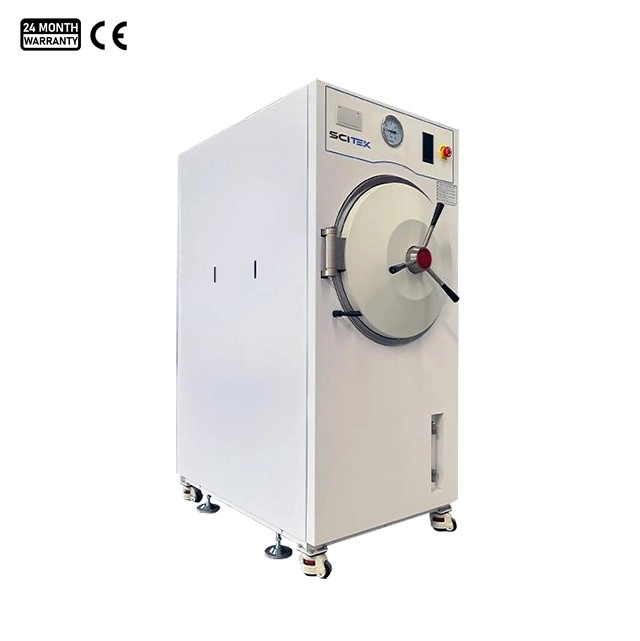

Horizontal Pressure Steam Autoclave

Model : ST-H60; ST-H80; ST-H100; ST-H135; ST-H150;ST-H185; ST-H200; ST-H300; ST-H450
Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES

Horizontal Pressure Steam Autoclave Feature:

Overheat protection: Auto heating cut-off with alarm when overheated.
Electric interlock: Prevents cycle start if door is unlocked or chamber pressurized.
Door-temperature interlock: Avoids liquid explosion if temperature exceeds safe limit (20°C below boiling point).
Anti-burning protection: Cuts heating and alarms when water level is low.
Steam pressure safety valve: Activates when chamber pressure exceeds safe limit.
Circuit safety device: Protects against over-current and short circuits.

Horizontal Pressure Steam Autoclave Specification:

Model	ST-H60	ST-H80	ST-H100	ST-H135	ST-H150	ST-H185	ST-H200	ST-H300	ST-H450
Capacity	60L	80L	100L	135L	150L	185L	200L	300L	450L
External Size (WxDxH)(mm)	985x600x1450	985x600x1450	1200x600x1450	1000x710x1550	1330x710x1550	1250x710x1550	1320x710x1550	1350x900x1750	1750x900x1750
Chamber Size (ØxH)(mm)	Ø386×500	Ø386×700	Ø386×950	Ø500×700	Ø500×780	Ø500×950	Ø500×1000	Ø650×950	Ø650×1360
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Temp.Accuracy	0.1℃
Temp.Uniformity	≤±0.5℃
Designed Pressure	0.3Mpa
Sterilization Pressure	0.23Mpa
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Dressings/Fabric program ●Medical instrument program ●Rubber program ●Liquid program ●DIY program
Power Consumption	5.7KW	5.7KW	6KW	9.35KW	9.35KW	10.8KW	10.8KW	12KW	20KW
Power Supply Standard	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz
Sterilization Shelf	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs
Optional Accessories	Printer
Net Weight	105kg	120kg	140kg	225kg	240kg	255kg	265kg	350kg	450kg
Gross Weight	165kg	185kg	210kg	315kg	340kg	365kg	380kg	470kg	570kg
Shipping Size (WxDxH)(mm)	1280x700x1600	1280x700x1600	1450x700x1600	1300x850x1900	1400x900x1900	1440x930x2020	1490x930x2020	1650x1100x2120	2100x1100x2120
