- Model : ST-H150I; ST-H200I; ST-H300I; ST-H400I
- Capacity (L) : 150 / 200 / 300 / 400
- Chamber Size (ØxH)(mm) : Ø472×880 / Ø472×1150 / Ø620×995 / Ø620×1320
- Working Temperature (℃) : 105-136
- Working Pressure (Mpa) : 0.225

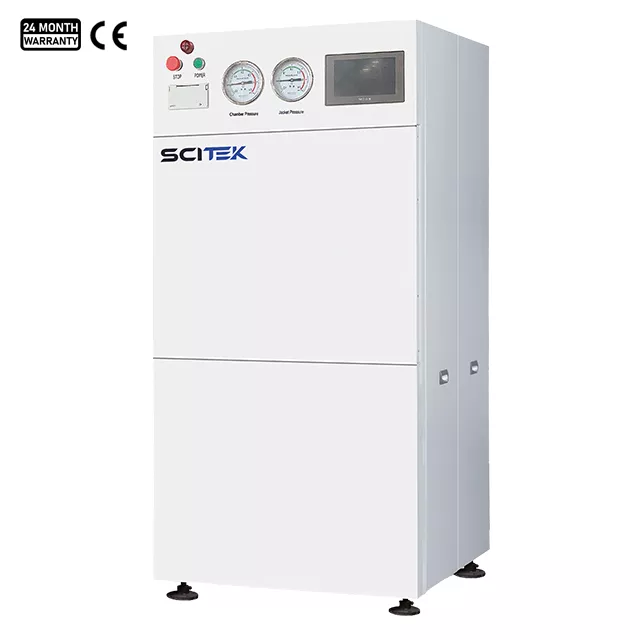

Horizontal Pressure Steam Autoclave 150/200/300/400L
Horizontal Pressure Steam Autoclave Feature:
- Horizontal circular chamber with jacket for safety, heat retention, and drying.
- HMI control system with touch screen and microcomputer for intuitive use.
- Disc-type gear and electric lock door for secure operation.
- Self-expanding door seals for effective sealing.
- Standard verification interface for easy calibration and validation.
Horizontal Pressure Steam Autoclave Specification:
| Model | ST-H150I | ST-H200I | ST-H300I | ST-H400I |
| Volume (L) | 150 | 200 | 300 | 400 |
| Steam Consumption (KG) | ≤12 | ≤13 | ≤18 | ≤22 |
| Water Consumption (KG) | ≤30 | ≤30 | ≤40 | ≤40 |
| Power (KW) | ≤2+⑮ | ≤2+⑮ | ≤2+⑱ | ≤2+⑱ |
| Chamber Size (ØxL)(mm) | Ø472×880 | Ø472×1150 | Ø620×995 | Ø620×1320 |
| Sizes (WxDxH)(mm) | 1290x690x1680 | 1560x690x1680 | 1430x850x1760 | 1755x850x1760 |
| Shipping Size (WxDxH)(mm) | 1570x840x1850 | 1740x840x1850 | 1610x990x1900 | 1935x990x1900 |
| N.W./G.W. (kg) | 400/500 | 450/550 | 510/610 | 650/750 |
| Design Pressure | -0.1~0.25Mpa | |||
| Design Temperature | 139℃ | |||
| Working Pressure | 0.225Mpa | |||
| Working Temperature | 105-136℃ | |||
| Temp Accuracy | ±1℃ | |||
| Temperature Equilibrium | <+2.0℃ | |||
| Water Pressure | 0.1-0.2Mpa | |||
| Compressed Air Pressure | 0.4~0.7Mpa | |||
| Steam Pressure | 0.3-0.7Mpa | |||
| Power Voltage | Three-phase five-wire AC 380V 50Hz | |||
