- Model : ST-H150YDA; ST-H200YDA; ST-H280YDA; ST-H400YDA; ST-H500YDA;
- Capacity : 150L; 200L; 280L; 400L; 500L;
- Working Pressure : 0.22MPa
- Max. Working Temperature : 134℃
- Sterilization Temperature : 40~134℃

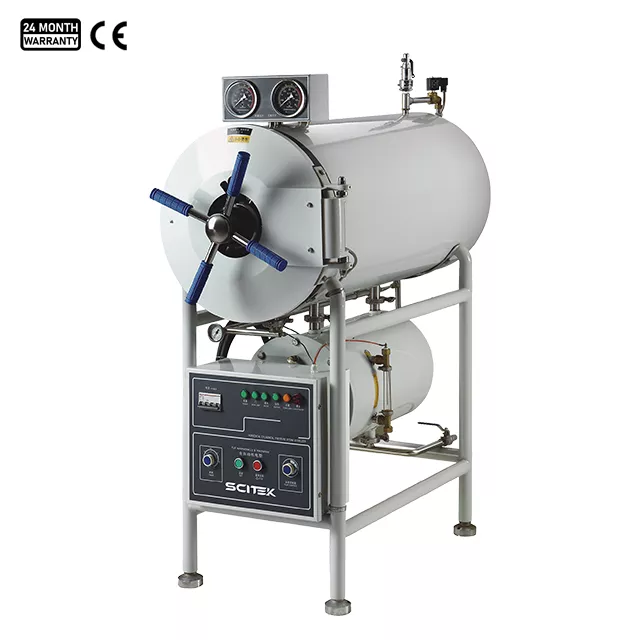

Horizontal Pressure Steam Sterilizer
Horizontal Pressure Steam Sterilizer Feature:
- Fully automated sterilization process, easy to operate.
- Includes drying function, ideal for medical dressings.
- Features over-temperature and over-pressure protection.
- Door remains locked until pressure drops below 0.027MPa; starts only when closed.
- Safety valve opens at 0.24MPa to release excess pressure.
- Auto power cut-off and alarm in case of water shortage.
- Sterilizer chamber made of durable stainless steel.
Horizontal Pressure Steam Sterilizer Specification:
| Model | ST-H150YDA | ST-H200YDA | ST-H280YDA | ST-H400YDA | ST-H500YDA |
| Capacity | 150L | 200L | 280L | 400L | 500L |
| Chamber Size (ΦxH)(mm) | Φ440×1000 | Φ515×1000 | Φ600×1000 | Φ700×1100 | Φ700×1300 |
| Working Pressure | 0.22MPa | ||||
| Max. Working Temperature | 134℃ | ||||
| Sterilization Temperature | 40~134℃ | ||||
| Sterilization Time Range | 0~60min | ||||
| Drying Time Range | 0~60min | ||||
| Temp. Uniformity | ≤±2℃ | ||||
| Consumption | 9KW | 9KW | 12KW | 18KW | 18KW |
| Power Supply | 380V, 50Hz | ||||
| External Size (WxDxH)(mm) | 1400x600x1300 | 1400x670x1650 | 1400x770x1780 | 1430x880x1830 | 1800x900x1820 |
| Net Weight | 240kg | 260kg | 365kg | 420kg | 470kg |
| Gross Weight | 320kg | 350kg | 465kg | 530kg | 580kg |
| Shipping Size (WxDxH)(mm) | 1560x750x1850 | 1560x820x1850 | 1680x920x1950 | 1600x1050x2050 | 1850x1050x2050 |
WHY SCITEK
- 24 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
