- Model : ST-H150YDB; ST-H200YDB; ST-H280YDB
- Chamber Size(ΦxH)(mm) : Φ440×1000; Φ515×1000; Φ600×1000
- Working Pressure : 0.22MPa
- Max. Working Temperature : 134℃
- External Size(WxDxH)(mm) : 1400x650x1820; 1400x750x1700; 1520x910x1900

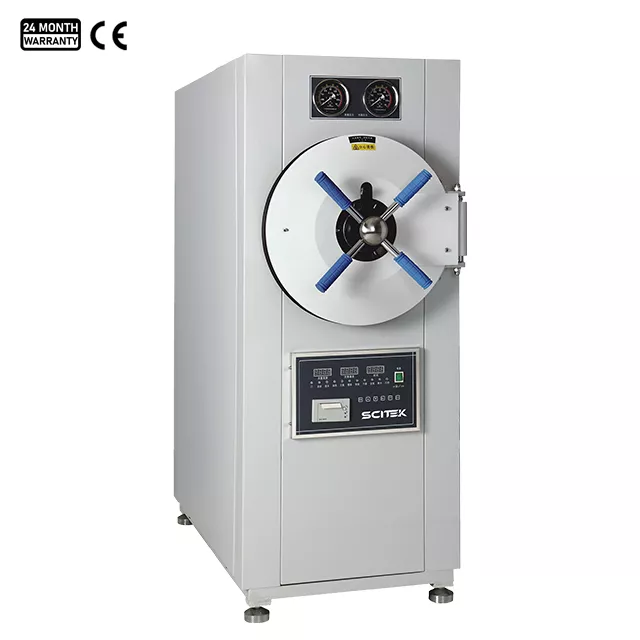

Horizontal Pressure Steam Sterilizer, 150L/200L/280L
Horizontal Pressure Steam Sterilizer Feature:
- Fully automated sterilization process, simple to operate.
- Drying function ideal for medical dressings.
- Over-temperature and over-pressure protection for safety.
- Door locks until chamber pressure drops below 0.027MPa; won’t start if not properly closed.
- Safety valve releases steam when pressure exceeds 0.24MPa.
- Auto power cut-off and alarm for water shortage.
- Stainless steel sterilization chamber for durability.
- Includes built-in printer for documentation.
Horizontal Pressure Steam Sterilizer Specification:
| Model | ST-H150YDB | ST-H200YDB | ST-H280YDB |
| Capacity | 150L | 200L | 280L |
| Chamber Size(ΦxH)(mm) | Φ440×1000 | Φ515×1000 | Φ600×1000 |
| Working Pressure | 0.22MPa | ||
| Max. Working Temperature | 134℃ | ||
| Sterilization Temperature | 40~134℃ | ||
| Sterilization Time Range | 0~99min | ||
| Drying Time Range | 0~99min | ||
| Temp. Uniformity | ≤±2℃ | ||
| Consumption | 9KW | 9KW | 12KW |
| Power Supply | 380V, 50Hz | ||
| External Size (WxDxH)(mm) | 1400x650x1820 | 1400x750x1700 | 1520x910x1900 |
| Net Weight | 340kg | 350kg | 462kg |
| Gross Weight | 430kg | 436kg | 570kg |
| Shipping Size (WxDxH)(mm) | 1560x860x1820 | 1560x910x1880 | 1680x1060x2050 |
WHY SCITEK
- 24 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
