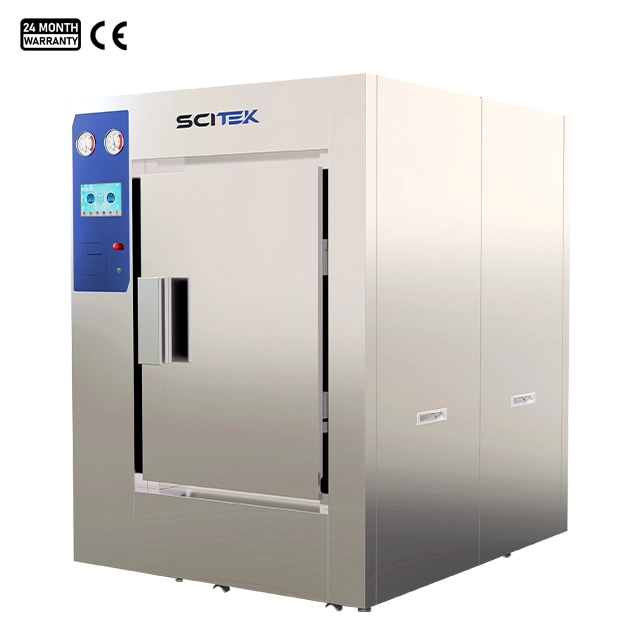

Horizontal Pulse Vacuum Autoclave, Motorised Door

Horizontal Pulse Vacuum Autoclave, Motorised Door

  • Model : ST-BVA250PV/360PV/600PV/800PV/1000PV/1200PV/1500PV/2000PV/2500PV/3000PV/4000PV/6000PV
  • Interior Design Pressure : -0.1~03MPa
  • Jacket Design Pressure : 0.3MPa
  • Design Temperature 150℃
  • Sterilization Temperature Control Precision : 0-2℃

Share the product

Category:

Horizontal Pulse Vacuum Autoclave Feature:

  1. The pulse vacuum autoclave features a translation door with an anti-pinch function and a double-door channel design, equipped with pressure and temperature safety interlocks on the liquid process door to ensure comprehensive operational safety.
  2. Its high-efficiency automatic sealing ring delivers exceptional sealing performance, with a lifespan of up to 1500 cycles, ensuring reliable and durable operation.
  3. The main structure includes a European ring reinforcement jacket, PLC programmable controller, and a color touchscreen interface.
  4. It offers versatile customizable programs for sterilizing aseptic clothing, utensils, rubber, liquids, media, waste, and more, along with professional tests like BD tests and vacuum leakage tests to meet diverse needs.

Horizontal Pulse Vacuum Autoclave Specification:

Model ST-BVA250PV ST-BVA360PV ST-BVA600PV ST-BVA800PV ST-BVA1000PV ST-BVA1200PV ST-BVA1500PV ST-BVA2000PV ST-BVA2500PV ST-BVA3000PV ST-BVA4000PV ST-BVA6000PV
Capacity(L) 255 360 600 800 1000 1200 1500 2000 2500 3000 4000 6000
Interior Design Pressure -0.1~03MPa
Jacket Design Pressure 0.3MPa
Design Temperature 150℃
Max Working Temperature 139℃
Max Working Pressure 0.25MPa
Vacuum Leakage Rate ≤0.13KPa/min
Final Vacuum -96KPa
Opening Pressure of the Inner Chamber Safety Valve 0.28MPa
Jacket Safety Valve Opening Pressure 0.28MPa
Sterilization Temperature Control Precision 0-2℃
Temperature Uniformity ±0.5℃
Negative Pressure Pulsating Vacuum Negative Value and Number Amplitude -80~0KPa, frequency 1~99
Number of Pulsations Across Pressure Amplitude -80~80KPa, frequency 1
Number of Positive Pressure Pulsations 1~3
Inner Tank Size (WxH)(mm) 550×550 610×610 610×910 610×910 610×910 680×1180 680×1180 900×1380 900×1380 900×1380 900×1380 900×1380
Depth 850 1000 1200 1500 1800 1500 1850 1620 2050 2400 3200 4800
Overall Size (LxWxH)(mm) 1150x1280x1800 1300x1350x1850 1500x1440x1900 1800x1440x1900 2100x1440x1900 1800x1480x2000 2100x1480x2000 1970x1750x2200 2350x1750x2200 2700x1750x2200 3500x1750x2200 5400x1750x2200
Weight (kg) 750 850 1250 1350 1550 1650 1850 2300 2700 3500 3500 6200
Gas Consumption (Kg/c) 18 22 35 47 55 65 80 106 132 132 132 132
Water Consumption (Kg/c) 120 180 320 400 500 600 750 1000 1250 1250 1250 1250
Power Supply 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ 380V,50HZ
Consumption 2KW+(24KW) 2KW+(30KW) 3KW+(48KW) 3.5KW+(54KW) 3.5KW 3.5KW 4KW 4.5KW 6KW 8KW 8KW 12KW

WHY SCITEK

  1. 24 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping
