- Model : ICB-70M; ICB-150M; ICB-250M
- Capacity : 70L / 150L / 250L
- Circulation Mode : Forced convection
- Display : Digital LCD
- Temperature Range : No humidification: 0～65℃; With humidification: 10 ～60℃

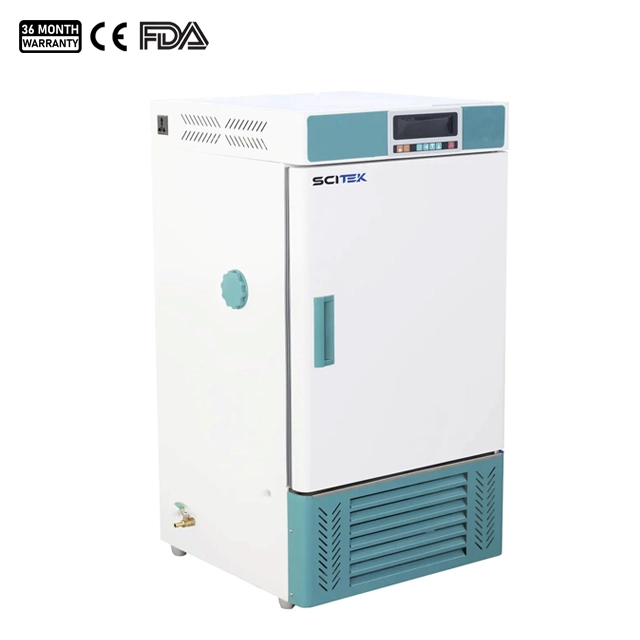

Mould Incubator 70/150/250L
The mould incubator is specially designed for the cultivation and study of moulds. The mould incubator provides precise temperature and humidity control, enabling moulds to grow and multiply in a controlled manner. It uses advanced temperature control technology and humidity regulation systems to ensure that samples are grown under optimum conditions.
Mould Incubator Feature:
- Unique circulation design with breeze fan for uniform temperature distribution.
- LCD display with 30-stage program control for round and ladder operation.
- Intelligent PID control with PT100 sensor for precise temperature regulation.
- Imported humidity sensor for stable, automatic humidity control.
- Double door structure with stalinite for easy observation and magnetic sealing.
- Intelligent defrosting ensures continuous operation without frost build-up.
- Inner humidifying system with low water consumption and water shortage alarm.
- UV lamp for sterilization.
Mould Incubator Specifications:
| Model | ICB-70M | ICB-150M | ICB-250M | |
| Capacity(L) | 70 | 150 | 250 | |
| Circulation Mode | Forced convection | |||
| Size(WxDxH) | Internal (mm) | 410x350x500 | 490x400x750 | 500x515x950 |
| External (mm) | 571x591x1051 | 646x641x1301 | 656x740x1501 | |
| Temperature | Range | No humidification:0～65℃;With humidification:10 ～60℃ | ||
| Fluctuation | High temperature:±0.5℃;Low temperature:±1℃ | |||
| Resolution | 0.1℃ | |||
| Uniformity | ±1℃ | |||
| Sensor | PT100 | |||
| Controller | PID Intelligent | |||
| Display | Digital LCD | |||
| Timer(min) | 0-99.9hx30Segment(with timing wait function) | |||
| Material | Internal | Mirror stainless steel | ||
| External | Cold rolled steel electrostatic spraying exterior | |||
| Shelves(Standard / Max ) | 2/5 | 2/9 | 2/12 | |
| Exhaust Hole | Φ43mm | |||
| Safety Device | Over temperature alarm, Over humidity alarm, Water shortage alarm | |||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | ||
| Consumption (W) | 1800 | 2000 | 2200 | |
| N.W./G.W. (kg) | 69/92 | 86/114 | 100/139 | |
| Shipping Size (WxDxH) (mm) | 676x680x1235 | 751x730x1490 | 761x830x1690 | |
| Optional | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage. | |||
Application of Mould Incubator:
- Scientific research: Used in microbiological research, especially in studying the growth pattern, reproduction law and physiological properties of moulds.
- Food safety is the process of detecting and controlling moulds in food in the food industry to ensure food quality and safety.
- Drug development: For testing the effect of drugs on moulds and evaluating the anti-mould effect of drugs.
- Industrial applications: In fermentation and brewing processes to provide stable environmental conditions and improve productivity and product quality.
Mould Incubator Packing:
The mould incubator is professionally packed to ensure safety during transport and packaged with a sturdy foam liner and a durable outer box. The outside of each package is marked with anti-tilt and fragile markings to remind transporters to handle it with care. Co-operate with reputable logistics companies to ensure safe and timely delivery of the equipment to customers and provide full tracking service to ensure the equipment is in good condition.
