- Model : FDO-85A; FDO-85; FDO-625
- Capacity : 85L / 85L / 625L
- Circulation Mode : Forced air convection
- Temperature Range : RT+10~300℃
- Timer : 0 – 9999min (with timing wait function)

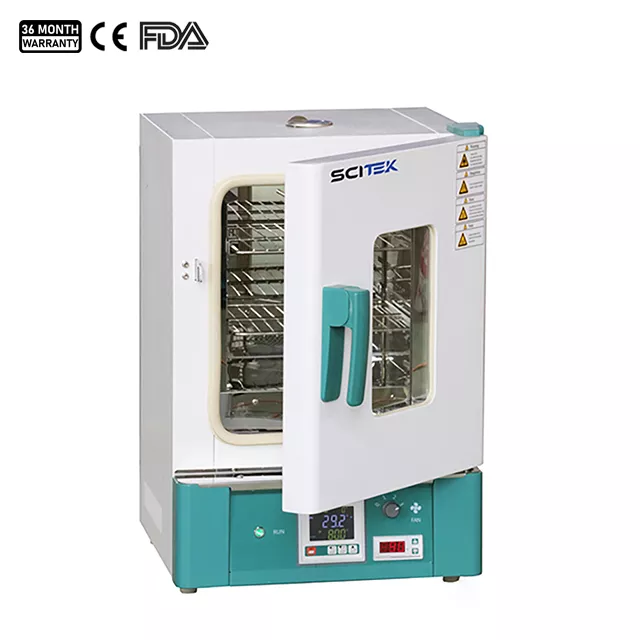

Vertical Electric Heating Drying Oven
Vertical Electric Heating Drying Oven Feature:
- User-friendly microprocessor controller ensures excellent temperature uniformity and stability for samples.
- Wide temperature range from RT+10 to 300°C with automatic over-temperature alarms.
- Corrosion-resistant stainless steel interior and exterior for a clean, professional look, resistant to fingerprints.
- Flexible shelving system with adjustable positions to optimize chamber space.
- Large, easy-to-read fluorescent display for clear monitoring.
- Compact design with excellent footprint/volume ratio, reducing required bench space.
Vertical Electric Heating Drying Oven Specifications:
| Model | FDO-85A | FDO-85 | FDO-625 | |
| Capacity(L) | 85 | 85 | 625 | |
| Circulation Mode | Forced convection | |||
| Size(WxDxH) | Internal (mm) | 450x420x450 | 450x420x450 | 760x660x1250 |
| External (mm) | 590x610x830 | 590x610x830 | 974x895x1677 | |
| Temperature | Range | RT+10~300℃ | ||
| Fluctuation | ±1℃ | |||
| Resolution | 0.1℃ | |||
| Uniformity | ±2.5% | |||
| Sensor | PT100 | |||
| Controller | PID | |||
| Display | LED | LCD | ||
| Timer | 0~9999min (with timing wait function) | |||
| Material | Internal | Mirror Stainless Steel | ||
| External | Cold rolled steel electrostatic spraying exterior | |||
| Shelves(Standard / Max) | 2/8 | 2/8 | 2/11 | |
| Test Hole (Optional) | Φ35mm top with function of test hole | Top double exhaust | ||
| Safety Device | Over temperature visible & audible alarm | |||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | AC 380/220V, 50/60Hz | |
| Consumption (W) | 2000 | 2000 | 5000 | |
| N.W./G.W. (kg) | 50/56 | 50/56 | 150/190 | |
| Shipping Size (WxDxH)(mm) | 680x685x1000 | 680x685x1000 | 1061x1000x1885 | |
Applications of Forced Air Drying Oven:
- Drying laboratory glassware and instruments.
- Preparing samples for analysis by removing moisture.
- Curing and drying coatings, adhesives, and paints.
- Sterilizing medical equipment and materials.
- Conducting stability and aging tests on various products.
WHY SCITEK
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
What is a drying oven in a laboratory?
A drying oven in a laboratory is a piece of equipment designed to remove moisture from samples or materials by subjecting them to controlled heat.
What is the basic principle of drying oven?
The basic principle of a drying oven is to use controlled heat to remove moisture from samples or materials placed inside the oven. By increasing the temperature within the oven chamber, the water molecules in the samples gain energy, causing them to evaporate and escape into the surrounding air. This process continues until the moisture content of the samples reaches the desired level, effectively drying them. The oven’s ventilation system helps to remove the moist air and maintain a dry environment within the chamber.
