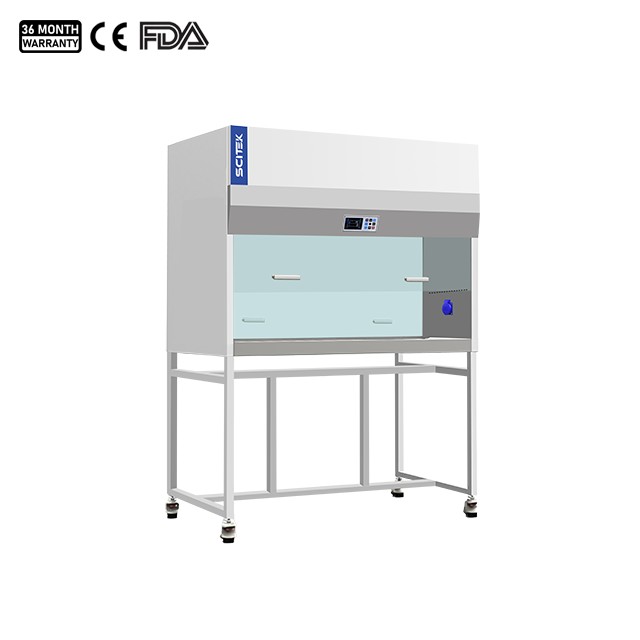

Vertical Laminar Flow Cabinet, Double Sides

Vertical Laminar Flow Cabinet Feature:

Double-sided design is more convenient for multiple people to operate together.
Brushed stainless steel work surface is easy to clean.
Non-direct light source design, effectively relieve the operator’s visual fatigue.
Microprocessor controller with LCD display.
Main unit and socket have independent capacitors to prevent current overload.
Easy-to-replace prefilter installed to extend the life of the HEPA filter.
Equipped with temperature sensor to show the real temperature during operation.

Vertical Laminar Flow Cabinet Specification:

Model		LCB-V1100D	LCB-V1300D	LCB-V1600D
External Size (WxDxH)(mm)		1090×755×1850	1360×755×1850	1665X755X1850
Internal Size (WxDxH)(mm)		950×650×620	1220×650×620	1525X650X620
Max.Opening		450mm (Safety height is 400mm)
Work Surface Height		750mm
Control System		Microprocessor controller with LCD display, display the operating status of each function
Airflow System	Airflow Velocity	0.2~0.5m/s, speed adjustable
Air filtration System	Pre-Filter	1pcs, Polyester fiber,washable
	HEPA Filter	1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
	Cleanliness Grade	ISO Class 5 (formerly Class 100)
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless steel
	Front Window	Manual Sliding Sash: 5 mm UV Resistant Tempered Glass with counter-balance system and ergonomic handle
Electrical System	UV Lamp	20W×1	30W×1	30W×1
		With timing function, Interlock with front sliding sash.
		Emission of 253.7 nanometers for best sterilization effect.
	LED Lamp	6.5W×1	9.6W×1	9.6W×1
	Consumption	155W	285W	285W
	Consumption	Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤65dB(A)
Standard Accessory		1. Base Stand; 2. LED Lamp×1; 3. UV Lamp×1; 4. Waterproof Socket×2; 5. Footmaster Caster
Optional Accessory		Air velocity sensor
Net Weight (kg)		180	220	260
Gross Weight (kg)		230	275	320
Shipping Size (W×D×H)(mm)		1220×880×1395	1490×880×1395	1795x880x1395
Shipping Volume (m³)		1.5	1.8	2.2
